ULTRA-PURE WATER
AND WASTE WATER SYSTEM
Low investment cost
using ion-exchange or low operation cost with membrane
systems…John-Young reviews customers’ needs and offers the
appropriate system. Typical ultra-pure water systems comprise a
pre-treatment to remove particulates, hardness and chlorine from
incoming water. Removal of ions can be accomplished by ion-exchange
or RO membranes. Water can be further purified by polisher or EDI
membranes to consistently achieve resistivity greater than 17 mega
ohms. Incorporated into the systems are bacteria sterilizer, TOC
removal, and inert gas tank.
John-Young also offers recovery systems for solvents and water.
Combustible solvents miscible with oil contaminants can be recovered
using explosion proof vacuum evaporators. Contaminated water is
recovered using combination of physical / chemical treatments
followed by membrane separation technology.
John-Young has also developed a range of home water purifier with
pre-treatment, RO and UV sterilizer.
|
Provide Complete Ability of Designing and Manufacturing,
Also Can Provide By According To The Requirements of
Customers!! |
|
Analysis of Water Quality Analysis of
Requirements
à
Analysis of System
à
Confirm
à
Manufacture
à
Test
à
Fabricate & Delivery
à
Install & Running Test
à
Training
à
After Service |
|
CHOOSING & SERVICE OF RO MEMBRANE |
|
STANDARD RO MEMBRANE
* FILMTEC / DOW
* FLUID SYSTEMS / KOCH |
|
CUSTOM
UF/RO
EQUIPMENTS FOR PARTICULAR APPLICATIONS |
|
PLAN,
DESIGN AND MANUFACTURE THE RO/UF EQUIPMENTS ACCORDING TO THE
REQUIREMENTS OF CUSTOMERS.。
|
|
PRE/POST TREATMENT SUB-SYSTEM FOR RO SYSTEM |
|
PRE-TREATMENT：
* AUTO FILTER SYSTEM
* AUTO ACTIVE CARBON SYSTEM
* AUTO SOFTENING SYSTEM
* AUTO DOSING SYSTEM
* FILTER TANK & FILTER CARTRIDGE FILTERATION
EQUIPMENTS
POST-TREATMENT：
* UF SYSTEM
* UV STERILIZER SYSTE
* MMF0.2μm CIRCULATED BACTERIA FILTERING SYSTEM
* AUTO REVIVING TYPE PLC MIXED BED SYSTEM
* WATER QUAILITY MONITORING SYSTEM
* OZONE(O3) STERILIZER SYSTEM
CONTROLLING SYSTEM：
* STANDARD CONTROLLING SYSTEM
* PLC AUTO CONTROLLING SYSTEM
* HMI CONTROLLING SYSTEM |
|
|
|
|
RO Drinking Water Unit |
Top Page |
|

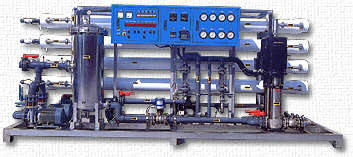

** Reverse Osmosis Systems 5 Tons ~ 100Tons /
Per Hour ** |
 |
|
80 Series reverse Osmosis System is
specially designed for commercial and
industrial applications of high flow
rate. The flow rate of this system is
available from 5 tons to 100 tons per
hour with custom-made functions. We
provide complete services of design,
manufacturing, assembling, and
commission and after-sales service. |
|
|
Features : |
|
* |
Thin Film composite ( TFC ) RO membrane
8040. |
|
* |
FRP high-pressure RO vessels. |
|
* |
Multi-staged booster pump, SUS. |
|
* |
Cartridge per-filter 1 or 5 um with
stainless steel housing. |
|
* |
Metered control system : |
|
|
* |
Automatic operation. |
|
|
* |
Periodically automatic membrane Flush. |
|
|
* |
Monitoring unit of water quality. |
|
|
* |
Clean-In-Place unit. |
|
|
* |
Safety protection on pumps. |
|
|
* |
Permeate and reject indicators.
|
|
|
* |
Safety protection on booster pump at low
influent pressure. |
|
|
* |
Operation stopped at high permeates
level in storage tank. |
|
|
* |
Custom made design-PLC, User interface
or conventional control. |
|
* |
Electro-polished, seamless SUS
high-pressure RO housing. |
|
* |
Multi-staged booster pump, SUS. |
|
* |
Cartridge per-filter 1 or 5 um with
stainless steel housing. |
|
|
|
Top Page |
Water
Purification Sikid
FILTERATION, DEMUDDY, SOFTEN AND BECTERIA
FILTERATION SERIES |
|
JYPR-MCS6000
P1/WS/CA/SD/CP-6000LPH |
 |
|
| |
|
JYUM-SU40GPM
UV/MF/CP/40GPM |
 |
|
| |
|
JYUM-SU20GPM
P1/UV/MF/CP 6/12/20GPM |
 |
|
| |
|
JYUM-SU100GPM
P1/UV/CP-100GPM |
 |
|
| |
|
JYOZ-SU2.8GPM
P1/OZON/CP-2.GPH |
|
|
|
|
THE SERIES OF PRE-TREATMENT & POST-TREATMENT
PACKAGES CAN BE THE ALTERNATIVE ACCESSORIES FOR MAIN
MACHINE, AND IT CAN BE INSTALLED SPECIFICALLY. THE
FRAME HAS BEEN USED THE STAINLESS ELECTROLYTIC
TREATMENT, EVERY SYSTEM HAS CONTROL PANEL AND THIS
WILL FINISH THE PERFORMANCE TEST BEFROE EX-FACTORY.
PRE-TREATMENT SERIES INCLUDES：
*MULTI-LAYERED
FILTRATION
*ACTIVE CARBON SOFTEN
*DOSING EQUIPMENTS
POST-TREATMENT SERIES
INCLUDES：
*MICRO FILTER(MF)、ULTRA *FILTER (UF)
*ULTRAVIOLET RAYS (UV)
*OZONE (O3)
* (MIXED BED). |
|
|
|
|
RO Water Treatment
System |
|
|
 |
|
JYRO-25TPH |
The
standard specification is 2,000～317,000.GPD. It
is used for some particular industries and
businesses.
|
|
|
|
 |
●STANDARD COMPONENTS：
* THIN FILM COMPOSITE 8040 MEMBRANE。
* FRP HIGH
PRESSURE SHELL。
* MULTI-STAGES PRESSURE PUMP。
* SUS QUICK FILTER WITH
1 OR 5 μm CARTRIDGE。 |
|
JYRO-25TPH |
|
 |
◎STANDARD CONTROLLING SYSTEM：
* AUTO TIMER MEMBRANE WASHING DEVICE。
* WATER QUALITY
MONITORING SYSTEM, MEMBRANE DOSING SYSTEM。
* PUMP SELF-PROTECTING DEVICE SYSTEM。
* FULL AUTO
OPERATING SYSTEM。
* DI WATER/DRAINED WATER’S FLOW RATES METERS。
*
DESIGN TO PROTECT THE LACK OF WATER TO STOP PUMP WHILE DI
WATER FULLED。
* TO BE ASSIGNED TO HAVE PLC, OR HMI CONTROL。 |
JYRO-15TPH |
The 40 series of RO membrane system: standard specification
is 6,000～38,000.GPD. It is used for large volume in industries
and businesses, such as Electronic Industry, Electro-Coating
Industry, Food Industry and Drinking Water Industry.
|
JYRO-SU38000 6TPH |
JYRO-SU25000 4TPH |
|
 |
 |
|
JYRO-SU19000 3TPH |
JYRO-SU12000 2TPH |
|
 |
 |
|
JYRO-SU9000 1.5TPH |
JYRO-SU6000 1TPH |
|
 |
 |
|

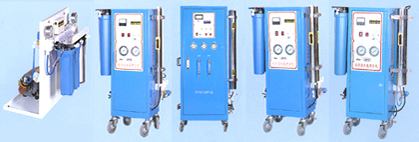

This series is the improved pure water drinking
system and it can be designed according to different water
quality in different area. The system can be combined with
several different modules for special filtration. It consists of
Pre-filtration, Reverse Osmosis system, Post-filtration of
Bacteriostasis. Product range is from 800 GPD to 19000 GPD
|
JYRO-12000AS |
JYRO-S9000UM |
|
 |
 |
P1/MS/CA/SD/12000GPD
2TPH |
P1/MS/CA/SD/9000GPD/UV/MF 1.5TPH |
|
JYRO-S9000C |
JYRO-S6000UM |
|
 |
 |
P1/MF/CP/9000GPD
1.5TPH |
P1/MS/CA/SD/6000GPD/UV/MF 1TPH |
|
JYRO-S6000 |
JYRO-S3000UM |
|
 |
 |
P1 / MS / CA
/ SD / 6000GPD 1TPH |
P1 / MS / CA
/ SD / 3000GPD / UV / MF 500LPH |
|
JYRO-S3000MUM |
JYRO-S3000 |
|
 |
 |
|
P1/MF/3000GPD/UV/MF 500LPH |
P1/MS/CA/SD/3000GPD 500LPH |
|
JYRO-S1500 |
JYRO-S800UM |
|
 |
 |
|
P1/MF/3000GPD/UV/MF 500LPH
|
P1/MS/CA/SD/800GPD/MF
|

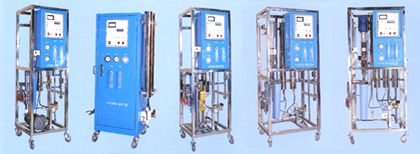

RO PACKAGES
This series focus on the using for middle
industry and business. All equipments are
installed with the stainless base. The
inspection will be finished before the
equipments leave the factory, it can electrifies
and water delivering after equipments have been
positioned; beneficial cost of water producing
immediately is excellent.。
|
JYRO-S1500UMO.S |
|
|
 |
STANDARD COMPONENTS：
* CITY WATER BOOSTER PUMP
* AUTO MULTI-LAYERED FILTRATION
* AUTO ACTIVE CARBON FILTER
* AUTO SOFTEN WATER MACHINE
* RO MACHINE
ALTERNATIVE COMPONENTS：
* ULTRAVIOLET RAY PURIFIERS
* 0.2um MICRO FILTER
* BACTERIOSTASIS CIRCULATING SYSTEM
* O3O3 OZONE STERILIZERS
|
|
P1/MS/CA/SD/1500GPD/2PF/UV/CA/MF/O3 |

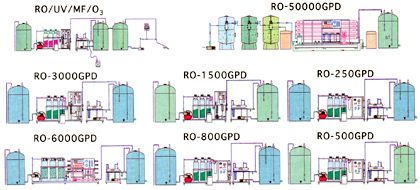

INSTALLATION
DESIGN
 |
|
|
|
 |
|
|
JYRO-150 |
JYRO-C250 |
JYRO-C1500 |
JYRO-C500 |
JYRO-C800 |
|
|
 |
|
|
JYRO-SU1500 |
JYRO-C3000 |
JYRO-SU2000 |
JYRO-SU3000
500LPH |
JYRO-SU4500/
SU6000
350LPH/1TPH |
|
|
|
|
