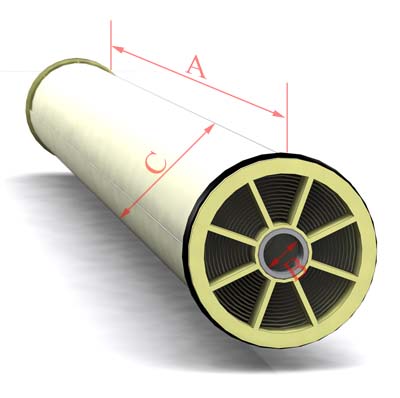

Element Specifications
(
Followings are for ref. only based on stable Cathodic
E-coat )
Model |
Permeate Rate L/M |
Outer Wrap |
UF-ED5-4040F |
2.8-3.5 |
Fiber Reforced |
UF-ED5-4040W |
2.5-3.5 |
White PVC Film |
UF-ED5-4020 |
1.0-1.5 |
Net ( bigger spacer) |
UF-ED5-6040 |
-- |
White PVC Film |

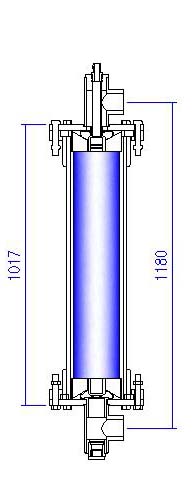

UF-ED5-8040 |
-- |
White PVC Film |
Recommended Operating Parameters for Cathodic
Electro-coat

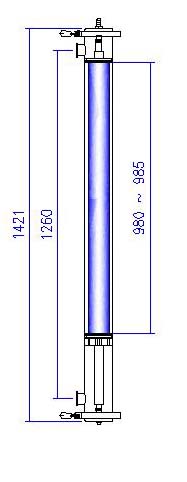

1. 4040F and 4040W series ; 4”
∮
x 40 “ Length )
Feed Flow Rate: |
100-200 L/M ( 25-50 GPM) |
Typical operating pressure: |
2-3 kg/cm2 ( 30-45 psi ) |
Maximum inlet pressure: |
3.5 kg/cm2 ( 50 psi ) |
Maximum pressure drop: |
2 kg/cm2 ( 30 psi ) |
Recommended pH range : |
4 - 8 |

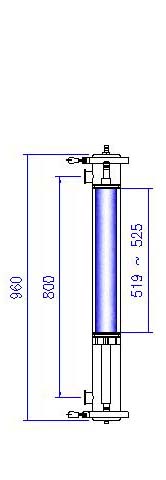

2. 4020 Module : Feed is about half, and pressure may
low to 1.0 kg/cm2 for Clear
3. Our UF can be used for both Cationic and Anionic
Electro-coat and
Waste Water
!
4. We have 6” Uf with PVC shell and 8” UF with PVC Shell
based on request !
|
